오일 로터리 펌프
Oil Rotary Pump
global
kodivac
network!
GHP-340K

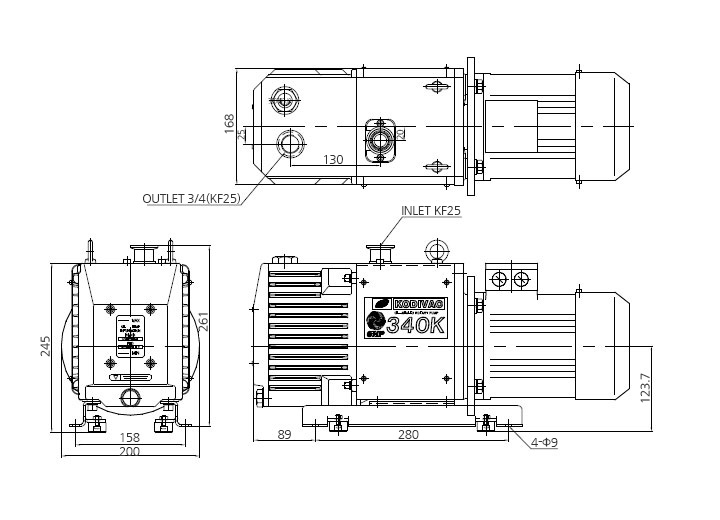

Floor Plan
Technical Specification
| Unit | 50Hz | 60Hz | ||
|---|---|---|---|---|
| Designed Pumping Speed | ℓ / min | 340 | 408 | |
| Effective Pumping Speed | ℓ / min | 290 | 350 | |
| Ultimate vacuum | Torr(Pa) | 1.0 X 10-3(1.3 X 10-1) | ||
| Motor power | 1Φ (단상) | KW | 0.75 | |
| 3Φ (삼상) | KW | 0.75 | ||
| Oil capacity | Max | ℓ | 1.7 | |
| Min | ℓ | 1.1 | ||
| Cooling | Air cooling | |||
| Inlet connection | NW-25 | |||
| Outlet connection | NW-25 | |||
| Weight | kg | 42 | ||
| Oil | MR-200 | |||

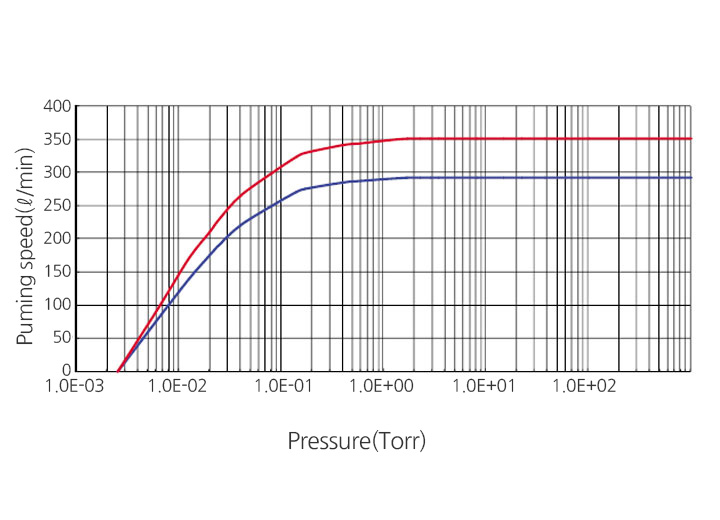

Speed Curve
Features
- 저소음 : 정밀가공 기술에 의한 저소음 저진동의 펌프입니다.
- 오일 역류방지기구 내장 : 오일 역류방지기구 내장으로 정지시에 오일역류를 방지하므로 Pump Vent Valve가 필요 없습니다.
- 뛰어난 호환성 : 전부품의 호환성이 있으며 위치결정형 평형핀의 체결，각 Stator 등의 접속은 전부 O-Ring Seal로 되어 있으므로 분해조립이 용이한 구조입니다.
- 가스 밸러스트밸브 부착 : 가스 밸러스트밸브를 갖추고 있으므로, 수증기 응축가스 등을 효과적으로 제거합니다.
- 오일 누설(漏洩) 방지 장치 : Oil Berth를 중간에 설치한 이중 Seal 구조로 되어 있으며, Oil Berth 양측면의 응력차를 극소화하여, Oil Seal 에서의 오일누설이 없습니다
- 분진 무발생 : 직결구동이므로 벨트 마모에 의한 분진 발생이 없으므로 깨끗한 환경을 유지합니다.
- 소형 경량 : 직결구동이므로, 종래에 비하여 소형 경량입니다.
- Low noise levels : This pump operates with low noise and low vibration by using technology.
- Built-in anti-backstream device: The GHP-Series are perfectly protected from backstream when operation is suspended, thanks to the built-in anti-backstream device, which cut of any oil flow, where by eliminating the need for pump leak valve.
- Easy disassembling and reassembling : All the parts and components of the systems have interchangeable compatibility. Securing of the location-setting parallel pins and connecting of stators are treated with O-Ring seal, making it possible to disassemble and reassemble with ease.
- Equipped with gas ballast valve : The Series are equipped with gas ballast valve, which effectively eliminates oil vapors and condensed gases.
- Prevention of oil leakage: The Series, designed to have a double seal structure with an oil berth installed in the intermediate position, minimize stress difference between both sides of the oil seal, preventing for no oil leaks from the oil seal.
- Anti-dust producing : Driven by direct connection, the Series do not produce any dusts as it may, belt abrasion when driven by belt, contributing to maintaining clean environment
- Driven by direct connection : The Series are small and light, compared to other systems
