LCV TYPE

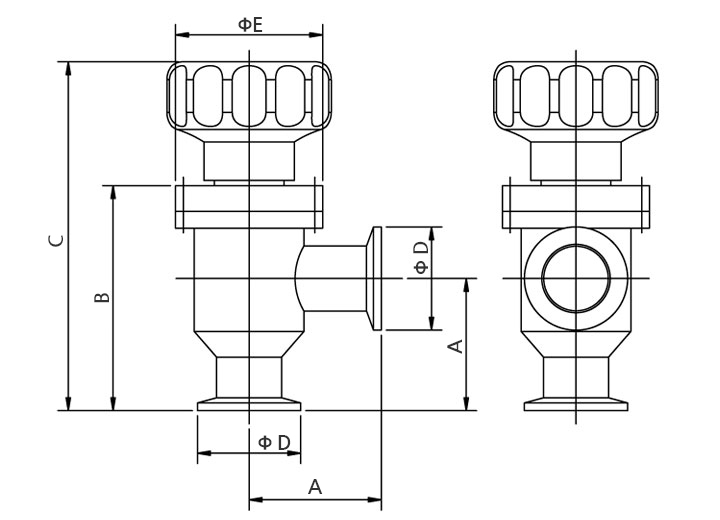

Floor Plan
Technical Specification
| Reference | LCV 25 | LCV 40 | LCV 50 |
|---|---|---|---|
| Flange Size | NW 25 | NW 40 | NW 50 |
| Conductance ( l/s) | 15 | 45 | 85 |
| Leak Rate (Pa·l/s) | Max. 2 X 10-10 | ||
| Differential Pressure on Valve Seat | 1.1 | ||
| A:Body B:Sealing Material | A : SUS 304 B : VITON | ||
| Life Cycle | 50,000( Room Temperature ) | ||
| Max. Baking Temperature(℃) | 60 | ||
| Weight(Kg) | 1.2 | 1.9 | 2.6 |
| A(mm) | 45 | 55 | 65 |
| B(mm) | 82.7 | 101.2 | 131 |
| C(mm) | 125.7 | 151.7 | 185.7 |
| ΦD(mm) | 40 | 55 | 75 |
| ΦE(mm) | 65 | 80 | 90 |
Features
