LCAV TYPE

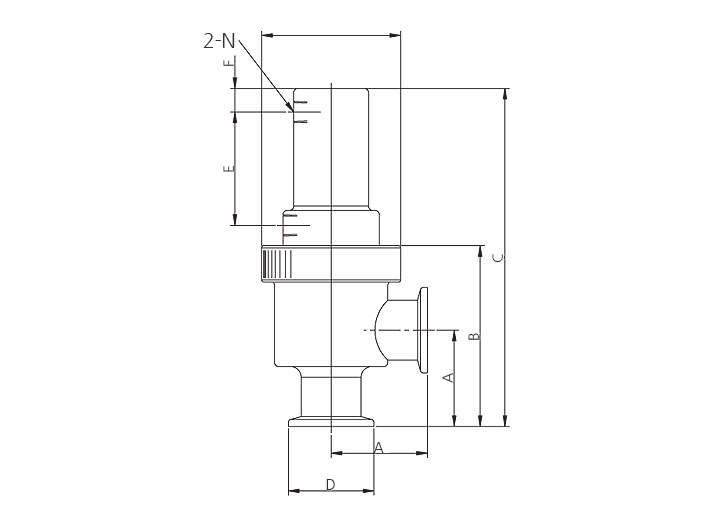

Floor Plan
Technical Specification
| Reference | LCAV 25 | LCAV 40 | LCAV50 |
|---|---|---|---|
| Flange Size | NW 25 | NW 40 | NW 50 |
| Conductance ( l/s) | 15 | 45 | 85 |
| Leak Rate (Pa·l/s) | Max. 2 X 10-10 | ||
| Differential Pressure on Valve Seat | 1.1 | ||
| A:Body B:Sealing Material | A : SUS 304 B : VITON | ||
| Life Cycle | 100,000( Room Temperature ) | ||
| Max. Baking Temperature(℃) | 70 | ||
| Air Cylinder(ml) | 15 | 30 | 40 |
| Weight(Kg) | 1.2 | 2.0 | 2.5 |
| A(mm) | 45 | 55 | 65 |
| B(mm) | 84.5 | 103 | 131 |
| C(mm) | 158 | 179 | 215 |
| ΦD(mm) | 40 | 55 | 75 |
| E(mm) | 53 | 60 | 68.5 |
| F(mm) | 11 | 8 | 8 |
| ΦG(mm) | 65 | 80 | 90 |
| N(mm) | 1/8 | 1/8 | 1/8 |
| Sensor Voltage( current ) | DC24V(5-50mA) | AC100V(5-25mA) | AC200V(5-12.5mA) |
| Protecting Circult | Installed | ||
| Extension | 0.5m | ||
