CF ROTATABLE BLANK FLANGES

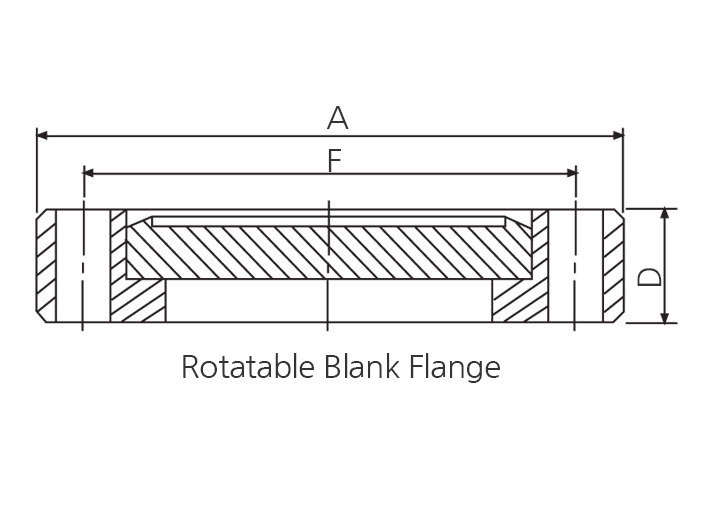

Floor Plan

Technical Specification
Flange Type Reference A
(mm)		 D
(mm)		 F
(mm)		 Hole
No.-Φ
mm inch
34 1 - 1/3 CF 16 RB 34 7.3 27.0 6 - 4.4
70 2 - 3/4 CF 35 RB 70 12.7 58.7 6 - 6.6
86 3 - 3/8 CF 50 RB 86 16.0 72.4 8 - 8.4
114 4 - 1/2 CF 63 RB 114 17.5 92.1 8 - 8.4
152 6 CF 100 RB 152 20.0 130.3 16 - 8.4
203 8 CF 150 RB 203 22.0 181.0 20 - 8.4
253 10 CF 200 RB 253 25.0 231.8 24 - 8.4
305 12 CF 250 RB 305 28.0 284.0 32 - 8.4
336 13 - 1/4 CF 336 RB 336.5 28.5 306.4 30 - 10.5
Features
