플랜지 Flange
global kodivac network!

NON ROTATABLE VG BORED FLANGES

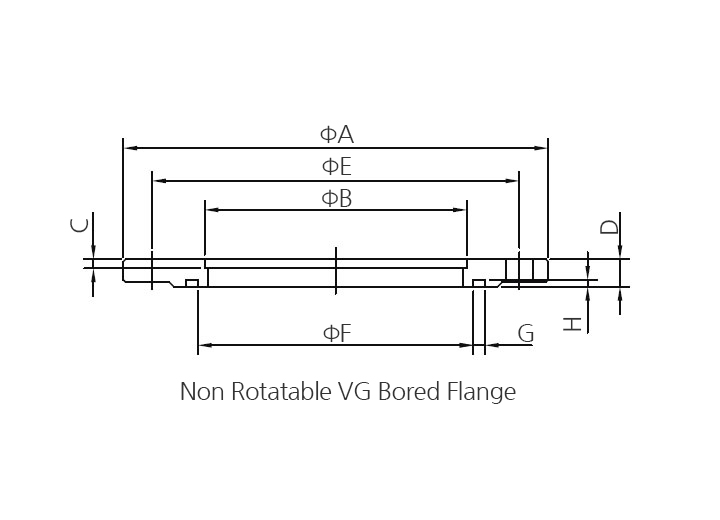

Floor Plan

Technical Specification
Flange Type(JIS) Reference A(mm) B(mm) C(mm) D(mm) E(mm) E(mm)
A B
10 3/8 VG 10 70 17.3 2.5 8 50 4 - 10
20 3/4 VG 20 80 27.2 2.5 8 60 4 - 10
25 1 VG 25 90 34.0 3 8 70 4 - 10
40 1 1/2 VG 40 105 48.6 3 10 85 4 - 10
50 2 VG 50 120 60.5 3 10 100 4 - 10
65 2 1/2 VG 65 145 76.3 3 10 120 4 - 12
80 3 VG 80 160 89.1 4 12 135 4 - 12
100 4 VG 100 185 114.3 4 12 160 8 - 12
125 5 VG 125 210 139.8 4 12 185 8 - 12
150 6 VG 150 235 165.2 4 12 210 8 - 12
200 8 VG 200 300 216.3 7 16 270 8 - 15
250 10 VG 250 350 267.4 7 16 320 12 - 15
300 12 VG 300 400 318.5 7 16 370 12 - 15
350 14 VG 350 450 355.6 9 20 420 12 - 15
400 16 VG 400 520 406.4 9 20 480 12 - 19
450 18 VG 450 575 457.2 9 20 535 16 - 19
500 20 VG 500 625 508.0 10 22 585 16 - 19
550 22 VG 550 680 558.8 11 24 640 16 - 19
600 24 VG 600 750 609.6 11 24 700 16 - 23
650 26 VG 650 800 660.4 11 24 750 20 - 23
700 28 VG 700 850 711.2 11 26 800 20 - 23
750 30 VG 750 900 762.0 11 26 850 20 - 23
800 32 VG 800 955 812.8 11 26 905 24 - 23
900 36 VG 900 1065 914.4 11 28 1015 24 - 25
1000 42 VG 1000 1170 1016.0 11 28 1120 24 - 25
