ISO SINGLE CLAW CLAMPS

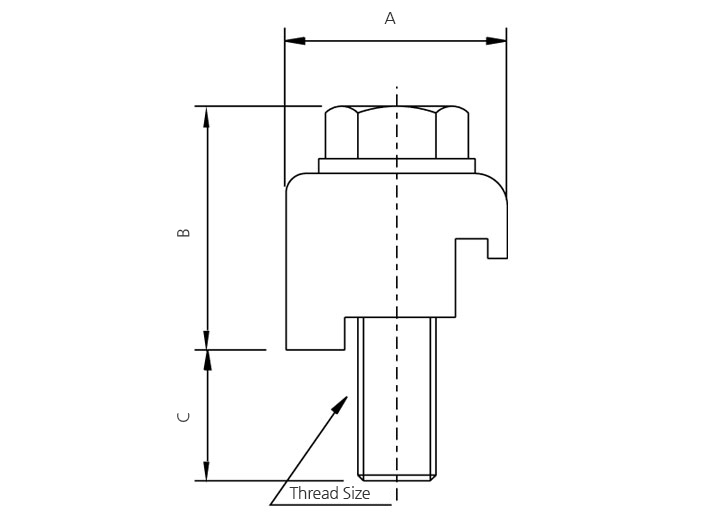

Floor Plan
Technical Specification
| Flange Type | A(mm) | B(mm) | Thread Size | Clamps Requierd |
|---|---|---|---|---|
| ISO 63 | 23.9 | 23.6 | M8 | 4 |
| ISO 80 | 23.9 | 23.6 | M8 | 8 |
| ISO 100 | 23.9 | 23.6 | M8 | 8 |
| ISO 160 | 27.9 | 23.6 | M10 | 8 |
| ISO 200 | 27.9 | 23.6 | M10 | 12 |
| ISO 250 | 27.9 | 23.6 | M10 | 12 |
| ISO 320 | 33.8 | 30 | M12 | 12 |
| ISO 400 | 33.8 | 30 | M12 | 16 |
| ISO 500 | 33.8 | 30 | M12 | 16 |
