TR-1DB

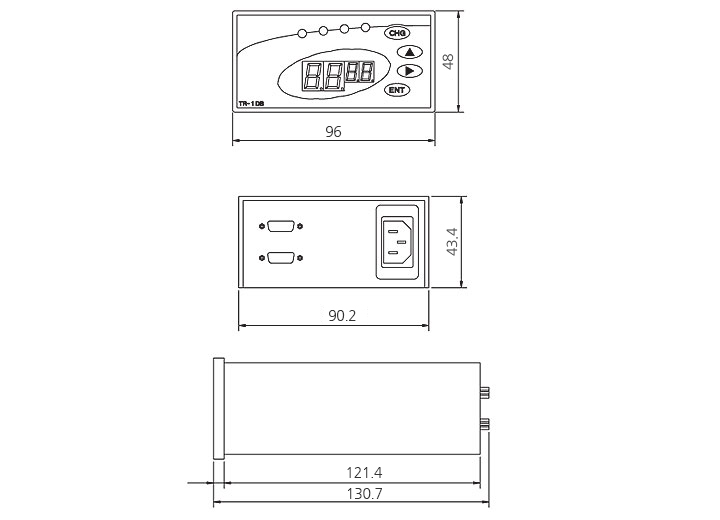

Floor Plan

Technical Specification
Responding transducer TRP-10 connection number： 1 point Comector： D-SUB 9P
Measuring range 1.0 X 105 to 5.0 X 102 Pa
Pressure display Mantissa (2-digits incbding 1 digit under decimal point)
+ sign + exponentel 1 digit, unit： Pa
Transducer communication RS-485 communication： zero-fixed
channel numer, communication cycle: 100 msec.
Setting Front key-input program system Set function： SP 1 to 2
Output/input from outside Output: set-point 1, 2 status NPN open collector
output (photo-coupler insulated)
rating： 30VDC/50mA or less
Input： Outside mode selection, sensor o n/off
Voltage inputt (photo-coupler insulated)
Rating: DC24V ±10%. 4.1mA Tvp.
Connector : high density D-SUB 15P
Rating power
Service temperature range		 AC 100 to 240V ±10%, 50/60HZ
5 to 60℃(storage temperature:-10 to 65°C)
Features
  • 텅스텐 필라멘트 사용
  • Set Points 출력은 (Only TRP-10SP센서)
  • 2점 Set Point 출력
  • 디지털 통신으로 표시기에 압력 변환 오차가 없음텅스텐 필라멘트 사용
  • Power indicator for Pirani gauge transducer : TRP-10
  • No pressure conversion error occurs on indicator due to digital communication of pressure signal from transducer
  • Maximum 3 units of TRP-10 can be connected for real-time measurement
  • Monitoring from outside possible due to installment of 3-channeled analog outpit and RS-485
  • Six set-point output can be assigned freely to any of 3 transduoers : for example, to each one of 3 transduoers can be assigned 2 points respectively, or to 1 transducer 6 points.
  • Power voltage is flexible between 100 to 240VAC
