PT-3P(M)

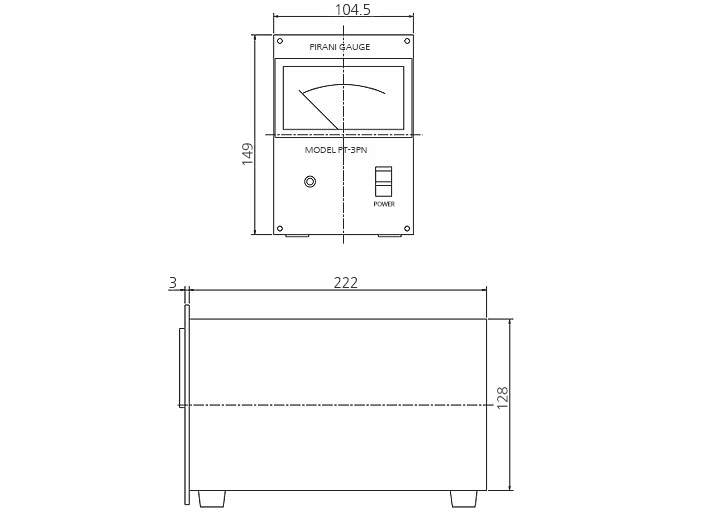

Floor Plan
Technical Specification
| Measuring range | 1.3 X 102 to 1.3 X l0-1 Pa |
| Range | 1-range |
| Measurement | constant temperature measuring circult |
| REC OUT output | 1-range DC 0 to 10mV |
| Set output (M) | 1-points AC100V 1A |
| Service temperature | 0 to 40℃ |
| Power voltage | AC100V 50/60Hz 4VA |
| Gauge head | P-3 ( Φ15 ) |
Features
- 정전압형 측정회로 신뢰성 높음
- 필라멘트 Au-Coating으로 내부식, 산화 강하여 수명이 길다
- 온도보상회로를 내장 안정된 측정
- 2개의 Set Point로 각 장치의 Interlock에 사용가능(3PM)
- Easy readout due to adoption of 1-range large-sized analog meter
- Low-price
- Equipped with recorder output
- Meter-relay attached type available
- For research and development
