IT-3DA

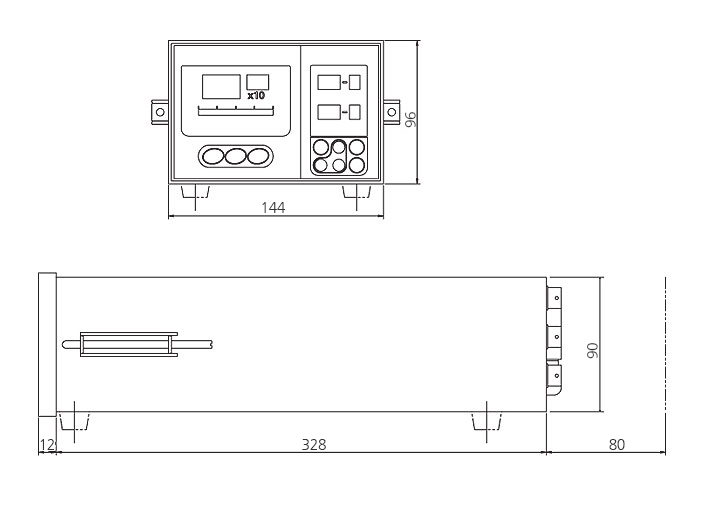

Floor Plan

Technical Specification
Measuring range B-A type : 9.9 X 10-2 to 1.0 X l0-7 Pa Schulz type : 9.9 X 100 to 1.0 X l0-3Pa
Sampling cycle 100 msec
Exterior output Set-point 2 points
Auxiliary function hysterics value, output theory
Rathg AC110V 0.5A load resistance
Status AC110V 0.5A load resistance
REC OUTPUT full range DC 0 to 5V/0 to 10V
Service temperature 0 to 40℃
Power voltage AC100-240V 50/60Hz 100VA
Gauge head IV-33( B-A ), SC-45( Schultz ) ( Φ15 )
Features
  • Set Point 2점
  • 사용목적에 따라 IV-55 or SC-45(슐츠)사용
  • The key operation is simple.
  • The set point is equipped with two.
  • With the recorder outpit.
  • It is equipped with RS485/RS422 serial communication(option) and it controls it with the host computer to 16 1 lines.
  • It is possible to do the data management and it supports to make FA.
  • Various for the vacuum equipment.
