IT-10P

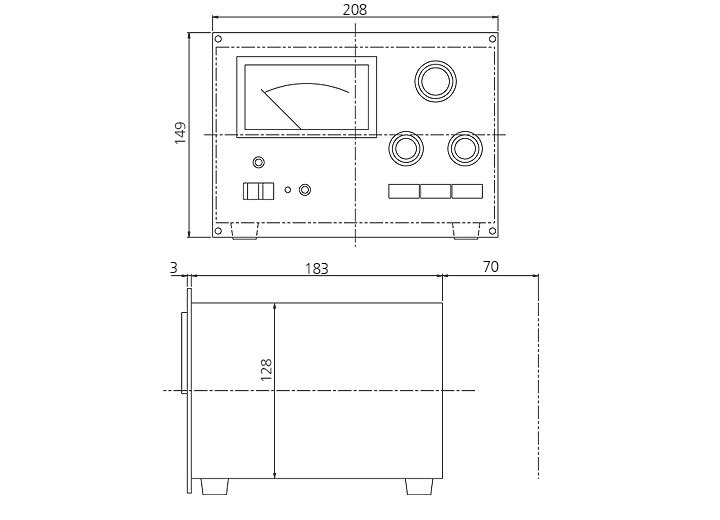

Floor Plan
Technical Specification
| Measuring reg. | 1.3 X 10-1 to 1.3 X l0-7 Pa |
| Measuring range | 5-ranges |
| REC OUTPUT | DC 0 to 10mV |
| Filament protection | switch off at 120% of full scale |
| Degassing system | election bombardment |
| Vacuum connection | Φ15 |
| Service temperature | 0 to 40℃ |
| Power voltage | AC100V 40VA |
| Gauge head | WNI-1000(B-A), IV-2000(triode) |
Features
- Analog ionization vacuum gauge with each-range switching system by use of large-sized indicator
- Separate use between B-A tube and triode possible
- Recorder output equipped
- For pressure monitoring
- For research and development
