IT-L20P

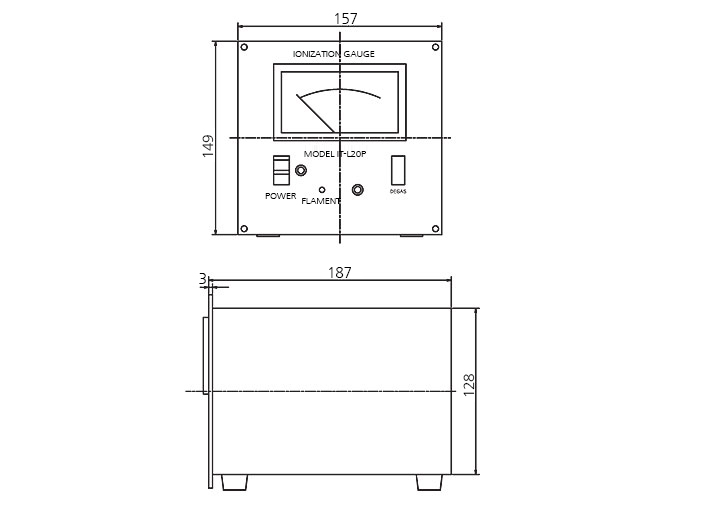

Floor Plan
Technical Specification
| Measuring reg. | 2.7 X 10-1 to 1.3 X l0-5 Pa |
| Measuring range | 1-ranges |
| REC OUTPUT | full range DC 0 to 10mV |
| Filament protection | switch off at 4 X 10 Pa or more |
| Degassing system | election bombardment |
| Service temperature | 0 to 40℃ |
| Power voltage | AC100V 50/60Hz 40VA |
| Gauge head | IV-2000(triode)Φ15 |
Features
- 탈가스 회로 내장 (레코더 출력첨부)
- PT-3P와 조합하여 넓은 범위 측정
- B-A관 3극관 가장 높은 진공계측 가능
- Analog ionization vacuum gauge by use of large-sized indicator
- Simple operation
- Recorder output equipped
- For pressure monitoring
- For research and development
