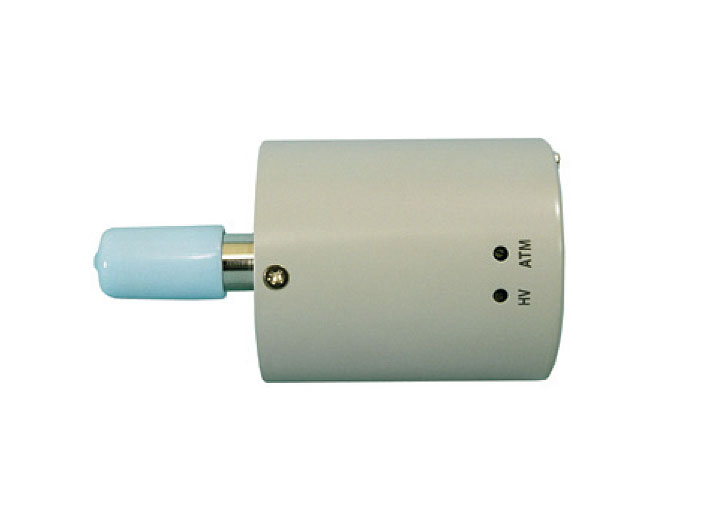

PSG-1

Floor Plan

Technical Specification
Sensor Part
Service ambient temperature 0 to 40℃
Color Munsell value N-6.5
Exterior Dimension Φ63 X 120L
Vacuum connection Φ15, option-NW 16
Connector shape 9-pins D-SUB connector


Circuit Part
Measuring method constant temperature system
Measuring range 1.0 X 106 to 5.0 X 10-1 Pa
Pressure resolving power System 4-20mA
Load resistance 400Ω or less
wire-breaking signal output System open collector
Output logic normal/close, open(option)
Rating DC 30V / 50mA
Option set-point : 2 points independent
Power voltage DC 12 to 15, 24V
Current consumption 150mA
Features
  • 극세필라멘트와 정온도회로에서 응답속도 빠르다
  • 4-20mA 출력에서 케이블의 저항이 없다.
  • 센서와 제어 회로가 분리 가능하기 때문에 필라멘트 단선 경우 센서부의 교환이 가능
  • 압력 스위치로서 사용 가능
  • Sensor + control circuit unitide
  • Driven by power voltage of 1 2 to 24DCV
  • Recording output installed
  • In the case of filament breaking, for example, replacement of sensor part only is feasible to cope with, since sensor and control circuit are separable
  • Optionally, 2-points setting of set-point output is feasible to use one as pressure switch
