KBP-300 / GHP-800K

Floor Plan

Technical Specification
No. 구분 기종 Booster KBP-300 Oil Rotary Ghp-800K
1 Ul fi mate Pressure Torr 5X10-4
2 Pumping speed 60HZ ㎥/hr 445 58
3 Pumping speed 60HZ L/min 7,400 960
4 Effective pump ing sp L/min 1900
5 Motor power KW 1.5 1.5
6 Voltage Volt 220/380 220/380
7 Rotation speed( 60Hz 기준） r.P.m 3000 1750
8 Type oil   U/G 20 MR-200
9 Oil capacity / Gear liter 0.8 3.5
  Oil capacity / Coupling liter 1.5
  Oil opacity / Shaft Seal liter 1.25
10 Inlet port   ISO-63 NW 40
11 Oulet port   ISO-40 PF 1½
12 Weight kg 65 68
13 Backing Pump   GHP-800K / 1000K
14 Coolinge Method   공랭

Effective pumping sp = SBP2/2SBp-SRP

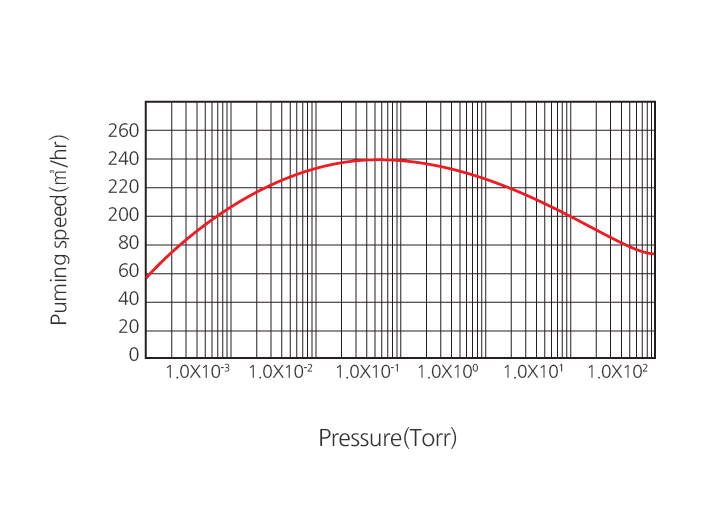

Speed Curve

Features
  • 콤팩트한 설계구조로 조합된 대용량 배기 시스템
  • 운송이 용이하며 설치가 간편
  • High capacity system which is assembled by compact structure
  • Easy installation and transpotation
