KBP-2700 / GHP-6000D

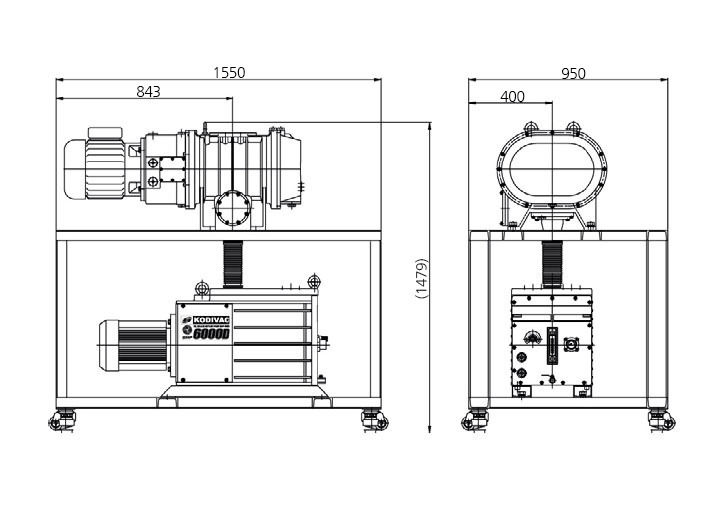

Floor Plan
Technical Specification
| No. | 구분 | 기종 | Booster KBP-2700 | Oil Rotary GHP-6000D |
|---|---|---|---|---|
| 1 | Ul fi mate Pressure | Torr | 5X10-4 | |
| 2 | Pumping speed 60HZ | ㎥/hr | 3,220 | 350 |
| 3 | Pumping speed 60HZ | L/min | 53,600 | 5,800 |
| 4 | Effective pump ing sp | L/min | 28,300 | |
| 5 | Motor power | KW | 7.5/11 | 8.6 |
| 6 | Voltage | Volt | 220/380 | 220/380 |
| 7 | Rotation speed(60Hz 기준） | r.p.m | 3000 | 1750 |
| 8 | Type oil | U/G 20 | MR-200 | |
| 9 | Oil capacity / Gear | liter | 3.5 | 28 |
| Oil capacity / Coupling | liter | 6.5 | ||
| Oil opacity / Shaft Seal | liter | 1.5 | ||
| 10 | Inlet port | ISO-160 | ISO-63 | |
| 11 | Oulet port | ISO-100 | ISO-40 | |
| 12 | Weight | kg | 315 | 200 |
| 13 | Backing Pump | GHP-6000D | ||
| 14 | Coolinge Method | 수냉 | ||

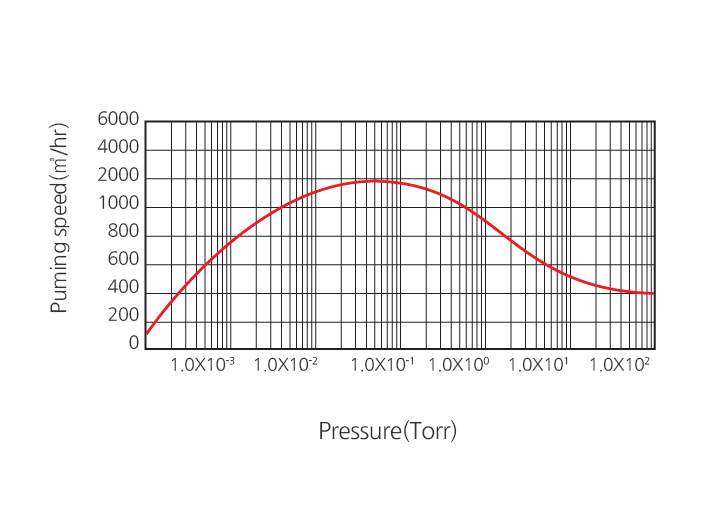

Speed Curve
Features
- 콤팩트한 설계구조로 조합된 대용량 배기 시스템
- 운송이 용이하며 설치가 간편
- 간편한 유니트 조작기능 부착
- 오일트랩이 내장되어 오일의 비산방지를 최소화
- High capacity system which is assembled by compact structure
- Easy installation and transpotation
- Convenient operation function utit
- Minimize to prevent oil flying caused by installation of exhausting filter
- Built-in trap minimize oil scattering
