KBP-2700 / KRP-4500

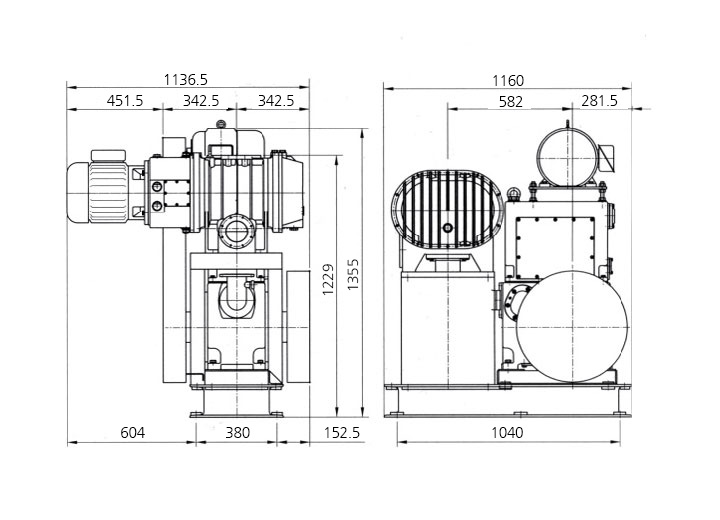

Floor Plan

Technical Specification
No. 구분 기종 Booster KBP-1200 Oil Rotary KRP-4500
1 Ul fi mate Pressure( N2 ) Torr(pa) 5 X 10-4( 6.5 X 10-2 )
2 Pumping speed 60HZ ㎥/hr 1,200 270
3 Pumping speed 60HZ L/min 20,000 4,500
4 Effective pump ing sp L/min 11,260
5 Motor power KW 4 5.5
6 Voltage Volt 220/380 220/380
7 Rotation speed(60Hz 기준） r.p.m 3000 450
8 Type oil   U/G 20 MR-200
9 Oil capacity / Gear liter 1.1 12
  Oil capacity / Coupling liter 1.2
  Oil opacity / Shaft Seal liter 1.15
10 Inlet port   ISO-160 ISO-80
11 Oulet port   ISO-100 ISO-80
12 Weight kg 200 440
13 Coolinge Method   수냉

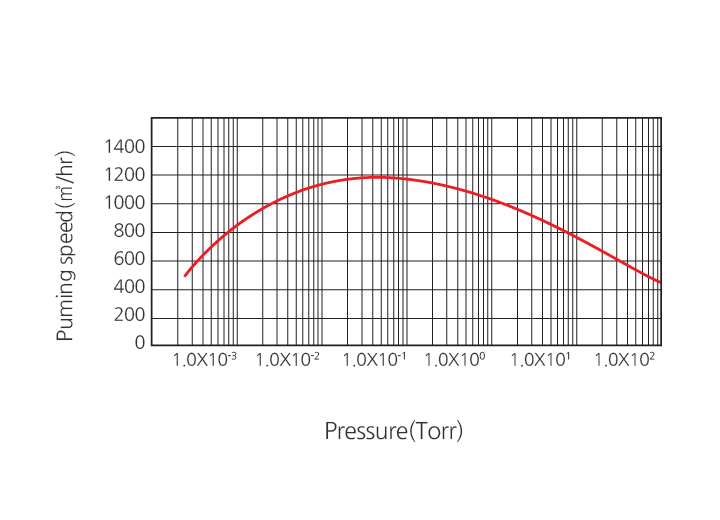

Speed Curve

Features
  • 콤팩트한 설계구조로 조합된 대용량 배기 시스템
  • 운송이 용이하며 설치가 간편
  • 간편한 유니트 조작기능 부착
  • 오일트랩이 내장되어 오일의 비산방지를 최소화
  • High capacity system which is assembled by compact structure
  • Easy installation and transpotation
  • Convenient operation function utit
  • Minimize to prevent oil flying caused by installation of exhausting filter
  • Built-in trap minimize oil scattering
